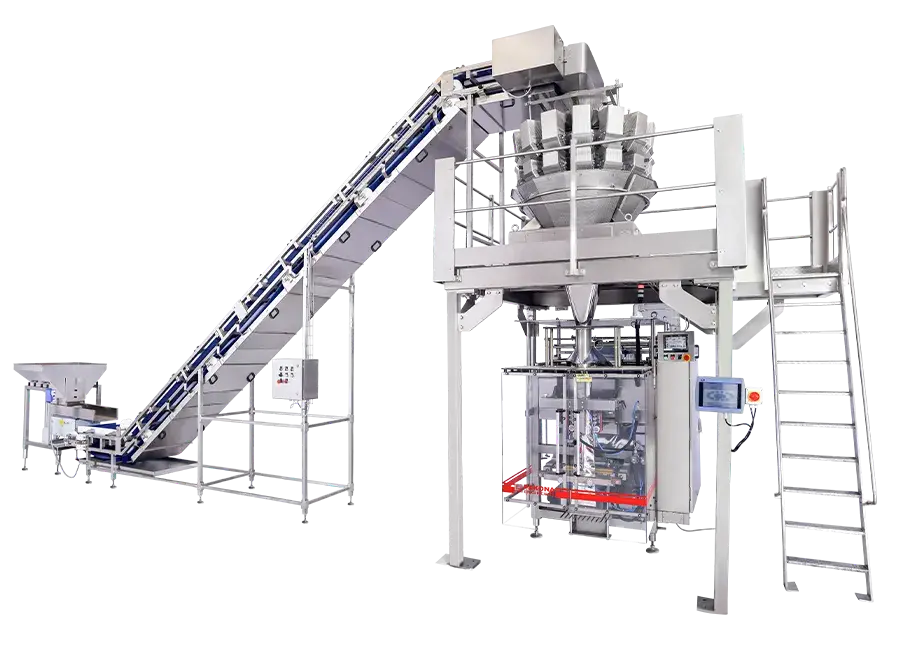

PK-70 L
The PK-70 series includes two variants: Large and X-Large. Both models feature the same power requirements and air consumption. The Large model operates at higher speeds, while the X-Large model offers a slightly lower speed. The machines differ in size, with the X-Large being larger. Both models are constructed with MS-painted bodies and AISI-316 for product-contact parts.
| Specification | PK-70 Large | PK-70 X-Large |
|---|---|---|
| Nominal Speed (Dry Run) | Up to 70 pouches/min | Up to 50 pouches/min |
| Connected Load | 6.5 kW, 415 V, 3 Ø+N, 50 Hz | 6.5 kW, 415 V, 3 Ø+N, 50 Hz |
| Air Consumption at 6 Bar | 8.4 NL/Cycle | 8.4 NL/Cycle |
| Machine Size (L × W × H in mm) | 2000 × 1500 × 2000 | 2800 × 1500 × 2400 |
| Machine Construction | MS Painted, Product Contact Parts are in AISI-316 | MS Painted, Product Contact Parts are in AISI-316 |
| Bag Width Size (mm) | 70 - 350 | 70 - 400 |
| Bag Length Size (mm) | 100 - 500 | 100 - 600 |
| Filling Volume | 1 cc to 5000 cc | 500 cc to 10000 cc |
| Packaging Material | Co-Extruded LDPE or All Heat Sealable Laminates | Co-Extruded LDPE or All Heat Sealable Laminates |
