PK-91

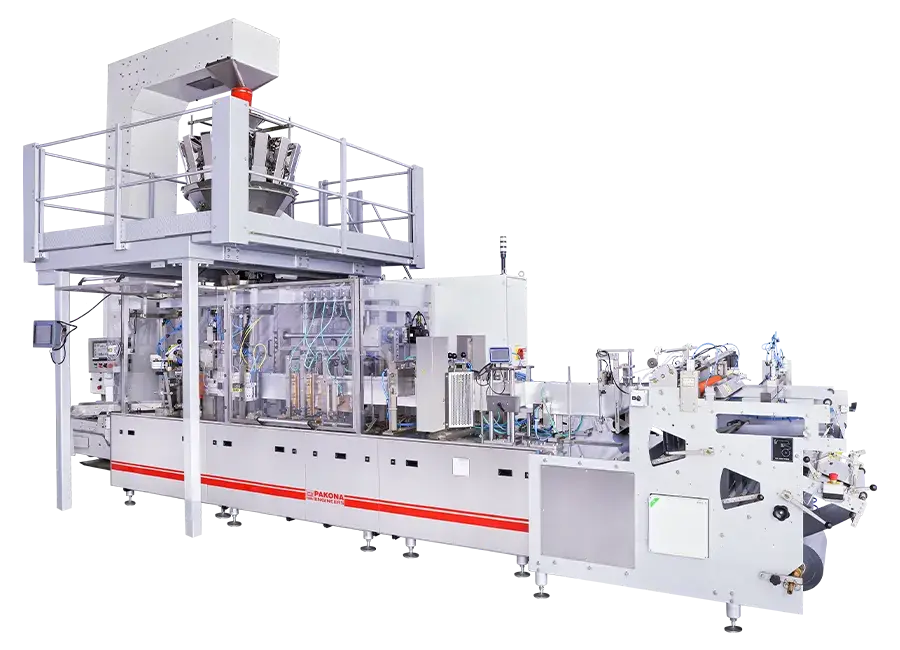

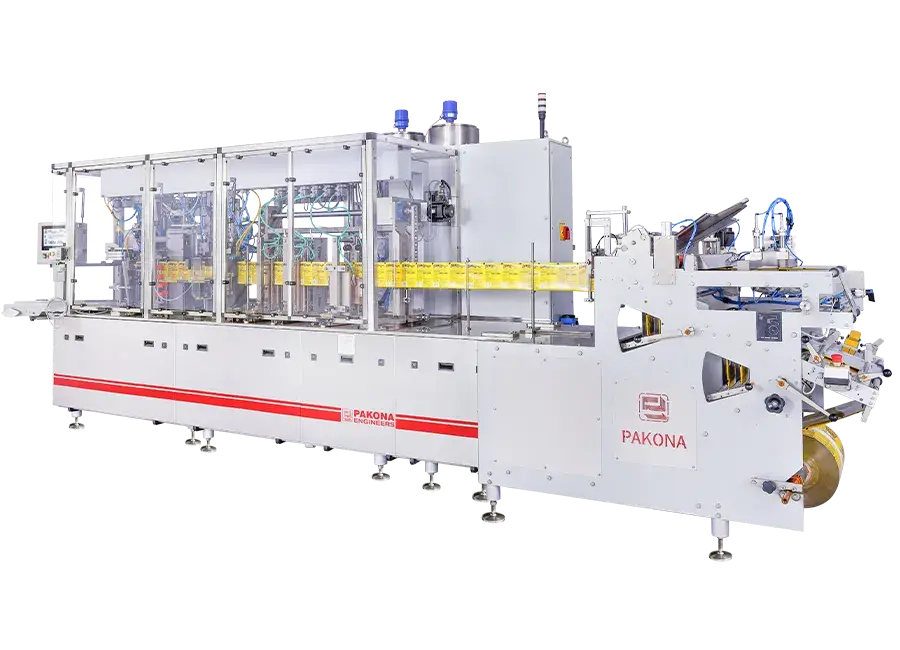

The PK-91 is a high-performance Horizontal Form Fill Seal (HFFS) machine designed by Pakona for medium to large-scale packaging operations. A wide range of fillers are available as Auger, Volumetric cup, Liquid pumps and Multihead weighing scales.
| Specification | PK-91 Simplex | PK-91 Duplex |
|---|---|---|
| Nominal Speed (Dry Run) | Up to 120 pouches/min | Up to 240 pouches/min |
| Connected Load | 6 kW, 415 V, 3 Ø + N, 50 Hz | 7 kW, 415 V, 3 Ø + N, 50 Hz |
| Air Consumption at 6 Bar | 8.3 NL/Cycle | 10.3 NL/Cycle |
| Machine Size (L x W x H) | 4440 x 1650 x 2000 mm | 4440 x 1650 x 2000 mm |
| Machine Construction | MS Painted, Product Contact Parts are in AISI-316 | MS Painted, Product Contact Parts are in AISI-316 |
| Bag Width Size (mm) | 40 - 210 | 40 - 110 |
| Bag Length Size (mm) | 50 - 270 | 50 - 270 |
| Filling Volume | 1 cc to 1500 cc | 1 cc to 350 cc |
| Packaging Material | All Heat Sealable Laminates | All Heat Sealable Laminates |
